2 7/8 API 5DP Drill Pipe

TPCO

New Kind API Drill Pipe Attribute:

. Large connection strength and sealability

. Massive inside diameter of device joint

. Large torque resistance
. Substantial fatigue power and extensive exhaustion life
. Superior precision in measurement and shape
. Very good very low temperature toughness
. Fantastic extensive mechanical properties


Drill pipe production can transfer the welding parameters to the very best place to guarantee the standard of welding zone.

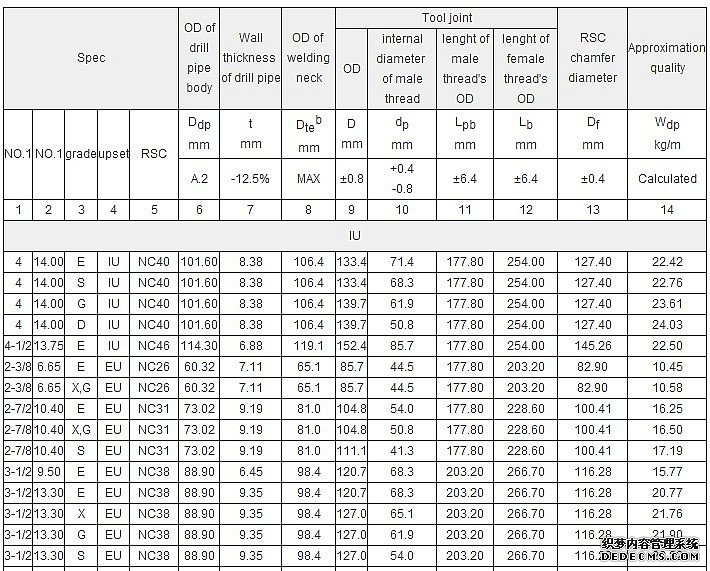

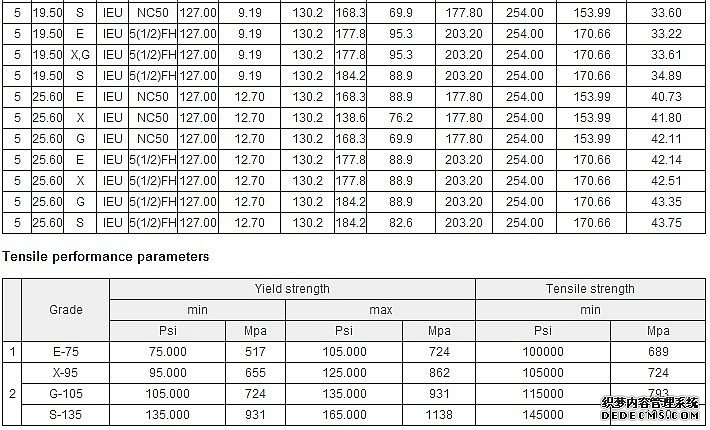

api 5DP drill pipe table

2014 New Product G-105 nc50 api drill pipe low price

2014 New Product G-105 nc50 api drill pipe low price



APINewDrillPipe



APILabel1

(PipeOD)



(in)

APILabel2

(NominalWeight)



(lbs/ft)

Wall Weight

Thickness Code

Number

(in)

Grade Minimum

Yield Strength (psi)

Torsional

YieldStrength



(ft‐lbs)

Tensile

Strength



(lbs)

Collapse

Pressure



(psi)

Internal

Pressure



(psi)







6.85





0.217 1

E 75,000

8,083

135,902

10,467

9,907

X 95,000

10,238

172,143

12,940

12,548

G 105,000

11,316

190,263

14,020

13,869

S 135,000

14,549

244,624

17,034

17,832

27/8









10.40





0.362 2

E 75,000

11,554

214,344

16,509

16,526

X 95,000

14,635

271,503

20,911

20,933

G 105,000

16,176

300,082

23,112

23,137

S 135,000

20,798

385,820

29,716

29,747



Weight Code Quantity shown in yellow design the typical weight for the API 5DP drill tube size.
The torsional yield energy is based on a shear strength of 62.7% in the minimum yield strength and nominal wall height.
The tensile strength, collapse pressure, and internal stress are primarily based on minimum amount yield strength.





Main element:

A. The drill rods adjust to the procedures of API SPEC 5D And API SPEC7.

B. The grade of Carbon steel and alloy steel are identified based on the demands of Class 1 And Group three of API SPEC 5D.

C. Drill tubing joints with the exact same degree adjust to the procedures within the Regular API SPEC 7.

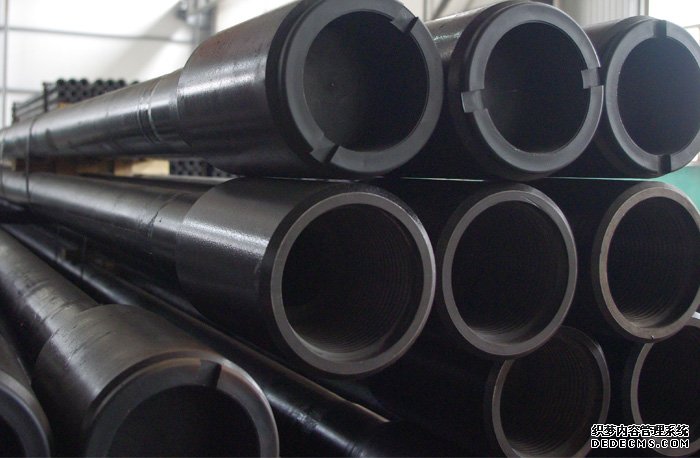

api 5DP drill pipe

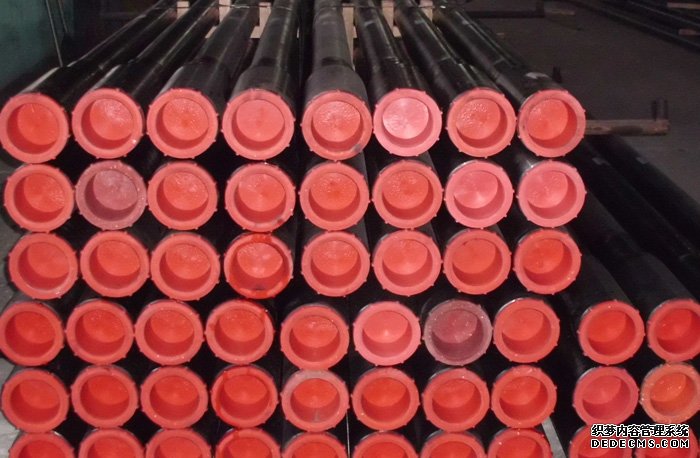

2 7/8 API 5DP Drill Pipe
