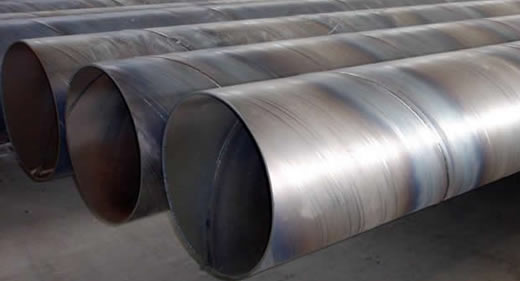

SSAW API 5L pipes
API SPEC 5L is a international standard specifies requirements for the manufacture of two product specification levels (PSL 1 and PSL 2) of welded steel pipes for use in pipeline transportation systems in the petroleum and natural gas industries. Spiral submerged arc welding(SSAW) is its forward direction and forming tube centerline hose reel molding angle (adjustable), side molding edge welding and weld them into a spiral.
SSAW pipe is made of hot rolled coiled steel by automatic submerged arc weld under normal atmospheric temperature. All the pipes are produced according to API Spec 5L standard. These pipes mainly used in petroleum and natural gas industry to transport flammable and non-flammable liquid and steel construction.
- O.D.:219.1-1020mm
- W.T.:5.0-12.7mm
- Steel Grade: API 5L GR.A, GR.B, X42, X46, X52, X56, X60, X65, X70
- Standard pipes and tubes for oil & gas Line pipe uses.
- Pipe Coating: HDPE/ 3PE/ 3PP/ Pipe cement mortar lining
-
Mill Test Certificate: EN 10204/3.1B
Third party inspection: SGS, BV, Lloyds etc.
