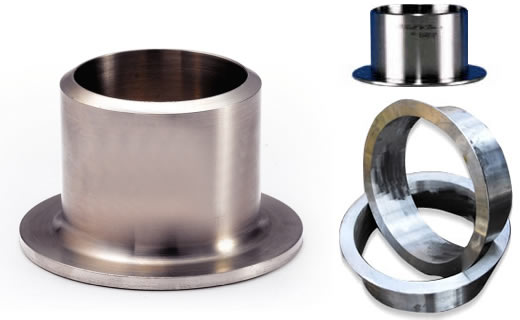

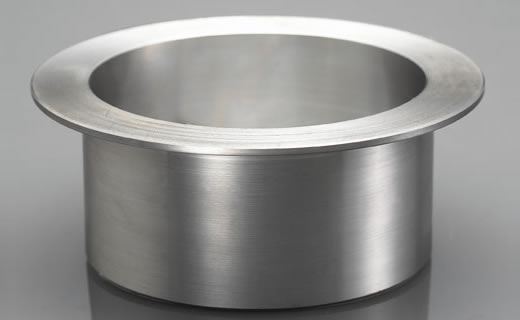

Stainless stub end

Stainless stub end are fittings used in place of welded flanges where rotating back up flanges are desired. They are also called Lap Joints and Vanstone Flared Laps. A rotating back up flange seats itself against the back surface of the Stub End. When bolts are added, the clamping action of the bolts presses the rotating back up flange against the back of the Stub End. The gasket surface of the Stub End then presses against a gasket and another gasket surface providing joints like standard flange joints. The seal is made by the gasket surface of the stub end alone, the flange only provides the clamping pressure on the joint.

1)seamless, single-slit tube wall thickness: 1 / 2 "NPS Sch5S The 24 "OD x 30mm
2)double-slit tube wall thickness: from 10 "to 58" OD x 30mm

Manufacturing standards:
1) ASTM ASME A/SA 403 MSS SP43 & SP75 ANSI B16. 9 ANSI B16. 28 ASTM A815 ASTM B363 B366
2) DIN2605 DIN2615 DIN2616 DIN2617
3) GB12459GB13401
4) JIS2313

Process:
1/2 "-16"(DN15 - DN400)overall molding cold flanging
18"-24"(DN450-DN600) argon arc welding to forming

Size:1/"-24"(DN15-DN600)
Standards:ASMEB16. 9, MSSSP43, HG205099, HG20621
Thickness:SCH5S-SCH40S
