Ring Joint Facings - ASME/ANSI B16.5 & B16.47

Note:

- Values for minimum flange thickness,

C, and overall length, D, are detailed in

the flange tables.

- For ring joint tolerances see page 8-9.

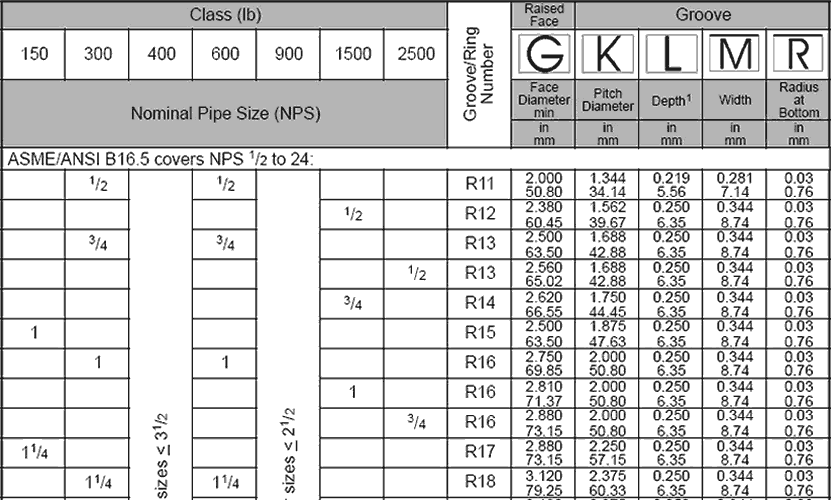

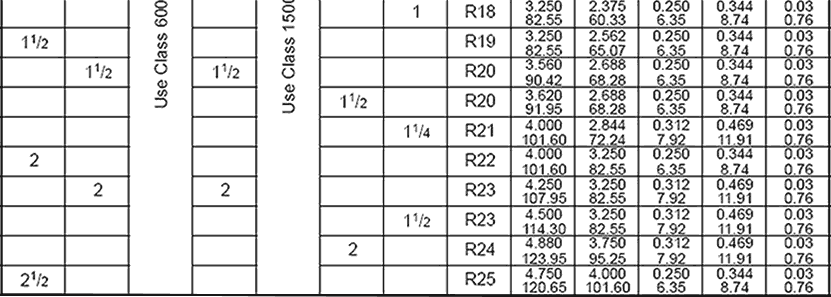

Ring joint facing dimensions - ASME/ANSI B16.5
and B16.47 Series A (MSS SP-44) and Series B (API 605)
