Heat Exchanger Stainless Steel Boiler Pipe
TPCO Boiler Tube and PipeGrade: 304H, 310H, 321H, 347H, 347HFG
Specification:
ASME SA213: Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
The specifications of ASME SA312, JIS G3459, EN 10216-5, DIN 17456, DIN 17458 are available.
Process Inspection:
1. Inspect single work-piece's dimension, levelness, bend
degree, hole size, hole location, etc.
2. Inspect the work-piece's welding result
Assembly Inspection:
After cleaning inspection is good, then assemble on set to inspect its overall levelness, dimension, etc.Water Test:
Water test is a good way to check the distributor's working performance. The test items includes:
1. Liquid height in trough
2. Used time of one hole to fill the container
3. Calculate the coefficient variance(CV)

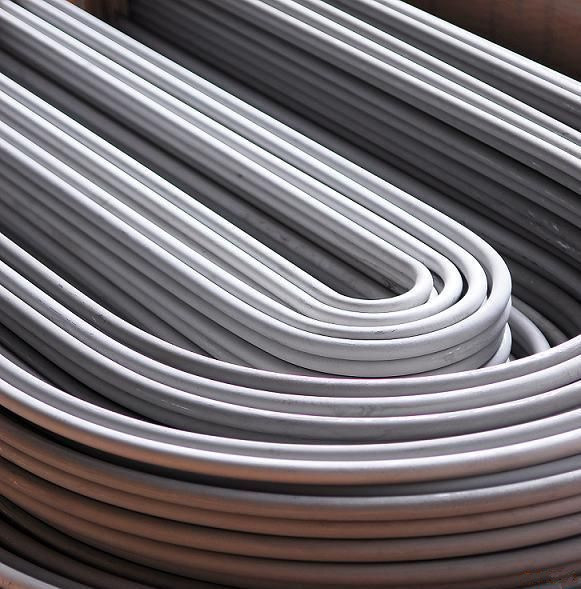

Heat Exchanger Stainless Steel U Tube Typical Grade: SS 410, 410S, 430, 439, 446, 444, 440C, L80 / 13Cr etc.
Heat Exchanger Stainless Steel U Tube Quick Details
Heat Exchanger Stainless Steel U Tube Dimensional Range & Specification
Size Range：OD 5/8"~1 1/2" ,
WT 1.65mm~2.77mm
Min Radio: 29mm ;
Max Radio:675.84mm
Chemical Composition:
| Chemical Composition | 304/304L(A312) | 316/316L(A312) |
321 (A312) |
304 (A312) |
316L (A312) |
347 (A312) |
S32205 (A790) |
S31803 (A790) |
TP310S (A312) |
| C | ≤0.035 | ≤0.035 | ≤0.08 | ≤0.08 | ≤0.035 | ≤0.08 | ≤0.03 | ≤0.03 | ≤0.08 |
| S | ≤0.030 | ≤0.030 | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.03 | ≤0.02 | ≤0.02 | ≤0.03 |
| P | ≤0.045 | ≤0.045 | ≤0.045 | ≤0.045 | ≤0.045 | ≤0.045 | ≤0.03 | ≤0.03 | ≤0.045 |
| Mn | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤2.0 |
| Si | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Cr | 18.0-20.0 | 16.0-18.0 | 17.0-19.0 | 18.0-20.0 | 16-18 | 17.0-19.0 | 22.0-23.0 | 21.0-23.0 | 24.0-26.0 |
| Ni | 8.0-11.0 | 11.0-14.0 | 9.0-12.0 | 8.0-13.0 | 10.0-14.0 | 9.0-13.0 | 4.5-6.5 | 4.5-6.5 | 19.0-22.0 |
| Mo | / | 2.0-3.0 | / | / | / | / | 3.0-3.5 | 2.5-3.5 | ≤0.75 |
| Ti | / | / | 5(C+N)-0.7 | / | / | / | / | / | / |
| N | / | / | 0.1 | / | / | / | 0.14-0.20 | 0.08-0.20 | / |
| Nb | / | / | / | / | / | 10C-1.0 | / | / | / |
Mandatory tests for Heat Exchanger Stainless Steel U Tube
1.100 % Dimensional and visual control.
2.100 % Ball passed test
3.100 % Hydrostatic test min 10Mpa/ min 10sec.
4.Coating :Passivation and oiled, Black paint or varnish
5.Mill Test Certificate:EN 10204/3.1B
Package Inspection:
1. Check the small parts quantity according to packing list
2. Check the protect method of the internals
PRODUCT CATEGORY
Stainless Steel Seamless Pipes or Tubes
Seamless Stainless Steel Heat Ex-changer U-Tubes
Duplex Stainless Steel Seamless Pipes or Tubes
Nickle Alloy Seamless Pipes or Tubes
Nickel Alloy Seamless U-Tubes
Stainless Steel Welding Pipes or Tubes
PRODUCT RANGE
S.S. SEAMLESS TUBES
Outer Diameter: 10.29mm to 168.3mm
Thickness:0.9 to 10.0mm
Specification:ASTM/ASME A/SA269/213/789
S.S. SEAMLESS PIPES
Outer Diameter:1/8" to 24"(10.29mm to 609.60mm)
Thickness:1.24mm to 59.54mm
