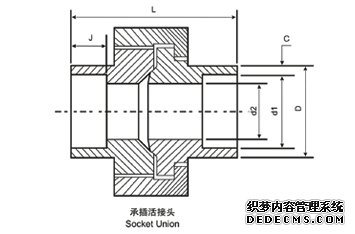

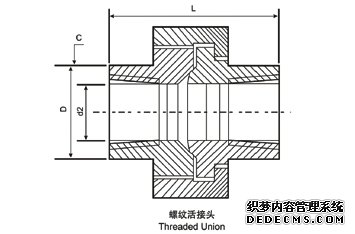

Union joint
TPCO
|
|
|
|
|
Nominal Diameter
Nominal Diameter
|
Outside diameter
Outside Diameter
|
Wall thickness
Wall Thickness
|
Socket aperture
Socket Bore
|
Flow aperture
Water way Bore
|
Jack depth
Depth of Socket
|
Nominal assembly length
Length Assem
Nominal
|
|
Dmin
|
Cmin
|
D1
|
D2
|
Jmin
|
L
|
|
DN
|
NPS
|
Socket welding
Socket
|
Thread
Threaded
|
Socket welding
Socket
|
Thread
Threaded
|
Socket welding
Socket
|
Socket welding, threaded
Socket & Threaded
|
Socket welding
Socket
|
Socket welding, threaded
Socket & Threaded
|
|
6
|
1/8
|
21.8
|
14.7
|
3.2
|
2.5
|
10.65
|
6.43
|
10
|
41.4
|
|
8
|
1/4
|
21.8
|
19.0
|
3.3
|
3.1
|
14.10
|
9.45
|
10
|
41.4
|
|
10
|
3/8
|
25.9
|
22.9
|
3.5
|
3.2
|
17.55
|
13.51
|
10
|
46.0
|
|
15
|
1/2
|
31.2
|
27.7
|
4.1
|
3.8
|
21.70
|
17.07
|
10
|
49.0
|
|
20
|
3/4
|
37.1
|
33.5
|
4.3
|
4.0
|
27.05
|
21.39
|
13
|
56.9
|
|
25
|
1
|
45.5
|
41.4
|
5.0
|
4.6
|
33.80
|
27.74
|
13
|
62.0
|
|
32
|
11/4
|
54.9
|
50.5
|
5.3
|
4.9
|
42.55
|
35.36
|
13
|
71.1
|
|
40
|
11/2
|
61.5
|
57.2
|
5.6
|
5.1
|
48.65
|
41.20
|
13
|
76.5
|
|
50
|
2
|
75.2
|
70.1
|
6.1
|
5.6
|
61.10
|
52.12
|
16
|
86.1
|
|
65
|
21/2
|
91.7
|
85.3
|
7.7
|
7.1
|
73.80
|
64.31
|
16
|
102.4
|
|
80
|
3
|
109.2
|
102.4
|
8.4
|
7.7
|
89.80
|
77.27
|
16
|
109.0
|
|
|
The above dimensions are in accordance with MSS SP-83 and BS3799 standards. |
