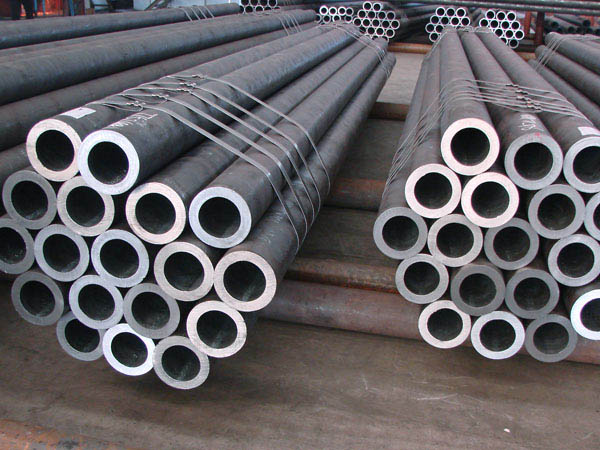

JIS G3445 steel pipe
JIS G3445 steel pipe used for machinery, automobiles, bicycles, furniture, appliances and other machine parts.
JIS G3445 standard specifies the carbon steel tubes, hereinafter referred to as the thes, used for machinery, automobiles, bicycles, furniture, appliances and other machine parts.
Carbon steel tubes for machine structural purposes .
Standards: JIS G3445
Size (mm):
- Outer Dimensions: 19.05mm – 114.3mm
- Wall Thickness:2.0mm – 14 mm
- Length: max 16000mm
Application: Tubes used for machinery, automobiles, bicycles, furniture, appliances and other machine parts.
The main products of steel / steel grade: STKM11A, STKM12(A,B,C), STKM13(A,B,C), STKM14(A,B,C).
Packing: Bare/bundles/crates/crate protection at the both sides of tubes or as per customers’ requirements .
Painting: as requested.
Chemical Compositions(%)
Grade | C | Si | Mn | P | S |
STKM11A | ≤0.12 | ≤0.35 | ≤0.60 | ≤0.040 | ≤0.040 |
STKM12A | ≤0.20 | ≤0.35 | ≤0.60 | ≤0.040 | ≤0.040 |
STKM12B | ≤0.20 | ≤0.35 | ≤0.60 | ≤0.040 | ≤0.040 |
STKM12C | ≤0.20 | ≤0.35 | ≤0.60 | ≤0.040 | ≤0.040 |
STKM13A | ≤0.25 | ≤0.35 | 0.30-0.90 | ≤0.040 | ≤0.040 |
STKM13B | ≤0.25 | ≤0.35 | 0.30-0.90 | ≤0.040 | ≤0.040 |
STKM13C | ≤0.25 | ≤0.35 | 0.30-0.90 | ≤0.040 | ≤0.040 |
STKM14A | ≤0.30 | ≤0.35 | 0.30-1.00 | ≤0.040 | ≤0.040 |
STKM14B | ≤0.30 | ≤0.35 | 0.30-1.00 | ≤0.040 | ≤0.040 |
STKM14C | ≤0.30 | ≤0.35 | 0.30-1.00 | ≤0.040 | ≤0.040 |
Mechanical Properties
Grade | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation (%) |
STKM11A | ≥290 | ≥35 | |
STKM12A | ≥175 | ≥340 | ≥35 |
STKM12B | ≥275 | ≥390 | ≥25 |
STKM12C | ≥355 | ≥470 | ≥20 |
STKM13A | ≥215 | ≥370 | ≥30 |
STKM13B | ≥305 | ≥440 | ≥20 |
STKM13C | ≥380 | ≥510 | ≥15 |
STKM14A | ≥245 | ≥410 | ≥25 |
STKM14B | ≥355 | ≥500 | ≥15 |
STKM14C | ≥410 | ≥550 | ≥15 |
