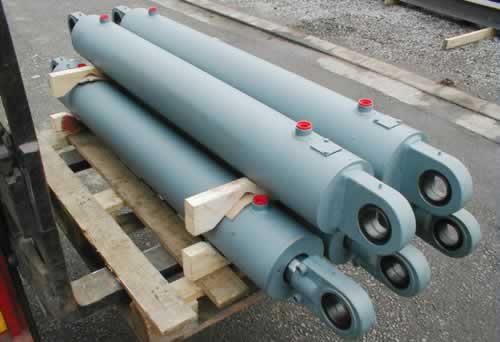

Hydraulic Cylinder

The hydraulic cylinder can be equipped with adjustable buffer (or not equipped) and also can be equipped with a shield

Stroke Length:from 50mm to 16000mm

Tube inner diameter range:from 40mm to 1000mm

Piston rod diameter range:from 12mm to 500mm

Working Pressure:from 70 bar to 700 bar

Seal type:Common stand or in accordance with client’s requirement (we usually use PARKER from USA or MERKEL from Germany)

Material of cylinder liner: copper (prolongs the life cycle of cylinder)

OEM in accordance with client's drawing or requirement.
Certificate by CCS, BV, GL, Lloyd’s, DNV, etc.

Complete specifications:

15 cylinder diameter specifications from F32 to F320mm
Three structures with inner blocking key, end thread or end flange.
The hydraulic cylinder can be equipped with adjustable buffer (or not equipped) and also can be equipped with a shield

Application industry:

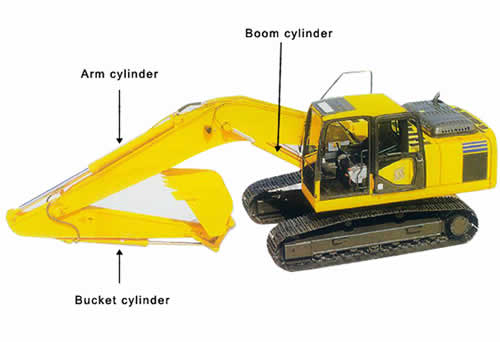

water conservancy,machanical equipment,oil industry,marine equipment, mining equipment, vehicles,energy,port facilities, etc.

Packing:

Anti rust oil to be spread on rod surface and each rod to be packed in paper roll and then in wooden box.
