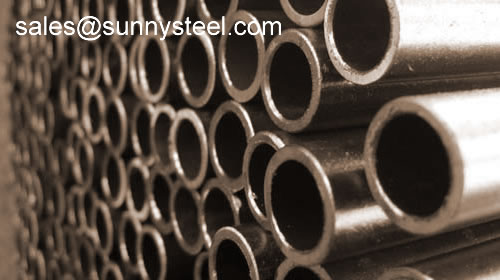

ASTM A333 Grade 1 Seamless Pipe
ASTM A333 Grade 1 is the part of standard covers wall seamless and welded carbon and alloy steel pipe intended for use at low temperatures. ASTM A333 Grade 1 alloy pipe shall be made by the seamless or welding process with the addition of no filler metal in the welding operation.
ASMT A333 Grade 1 seamless and welded pipes shall be treated to control their microstructure. Tensile tests, impact tests, hydrostatic tests, and nondestructive electric tests shall be made in accordance to specified requirements.
- Outer Dimensions: 19.05mm – 114.3mm
- Wall Thickness: 2.0mm – 14 mm
- Length: max 16000mm
Steel grade: ASTM A333 Grade 1
Packing: Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.
Inspection and Test: Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test.
Surface treatment: Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.
Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.
ASTM A333 Grade 1 Chemical Compositions(%)
| Compositions | Data |
| Carbon(max.) | 0.30 |
| Manganese | 0.40–1.06 |
| Phosphorus(max.) | 0.025 |
| Sulfur(max.) | 0.025 |
| Silicon | … |
| Nickel | … |
| Chromium | … |
| Other Elements | … |
Mechanical properties for ASTM A333 Grade 1 Alloy Steel
| Properties | Data |
| Yield strength(min) | 205Mpa |
| Tensile strength(min) | 380Mpa |
| Elongation(%) | 35 |
Strike Temperature Condition for ASTM A333 Grade 1
| The lowest temperature for strike test | |
| ℉ | ℃ |
| -50 | -45 |
Other ASTM Standards
- A262 Practices for Detecting Susceptibility to Intergranular Attack in Austenitic Stainless Steels
- A941 Terminology Relating to Steel, Stainless Steel, Related Alloys, and Ferroalloys
- A1016/A1016M Specification for General Requirements for Ferritic Alloy Steel, Austenitic Alloy Steel, and Stainless Steel Tubes
- E112 Test Methods for Determining Average Grain Size
