Electric Resistance Welded Pipe

ERW pipes means Electric Resistance Welded Pipes. ERW steel pipes and tubes are used. ERW steel pipes and tubes are used in various engineering purposes, fencing, scaffolding, line pipes etc. ERW steel pipes and tube are available in various qualities, wall thicknesses, and diameters of the finished pipes. ERW pipes means Electric Resistance Welded Pipes. A plate rolled to become a pipe and welded using Electric Resistance Welding process. Usully for for high diameter. (cheapest process avaiable) ERW pipes means Electric Resistance Welded Pipes. A plate rolled to become a pipe and welded using Electric Resistance Welding process. Usully for for high diameter. (cheapest process avaiable)

ERW pipes means Electric Resistance Welded Pipes. ERW steel pipes and tubes are used in various engineering purposes, fencing, scaffolding, line pipes etc. ERW steel pipes and tube are available in various qualities, wall thicknesses, and diameters of the finished pipes.

Our product finds its usage for Agricultural purposes, Drinking Water for housings, in collieries for extraction of Water, Thermal Powers, Transports, Hand pumps for deep boring wells, as a strong protection for cables by Telecom Department, Structural Purposes etc.

While manufacturing ERW steel pipes, only high-quality, continuous-cast, fully killed, control-rolled, fine-grain, low-carbon steel is used. High performance ERW steel pipes and tubing possess high strength corrosion resistance, high deformability, high strength and high toughness. We are among the leading manufacturers and suppliers of erw pipes and tubes in India. We are also one of the largest exporters of erw pipes and tubes in India. ERW pipes and tubes stands for Electric Resistance Welded pipes and tubes.

Based on the customers requirements we can manufacture erw pipes and tubes of different size and shape. We have a very large production capacity of erw pipes and tubes. ERW pipes and tubes are used in various engineering purposes, fencing, scaffolding, line pipes etc. ERW pipe is available in lengths from single random to 120 feet depending on mill capability. ERW pipe is available with square ends or beveled for welding, threaded and coupled and victaulic grooved. Surface finish are available in black or bare, or with protective coatings.

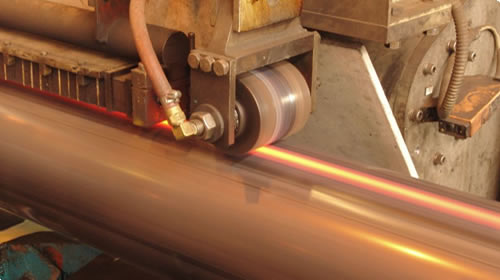

For pipes or tubes size 4 inch (10.2mm) OD and below, strip is fed into a set of forming rolls which consists of horizontal and vertical rollers so placed as to gradually from the flat strip in to a tube which is then allowed to pass the welding electrodes. The electrodes are copper disks connected to the secondary of a revolving transformer assembly.

Size:(ERW, HFI, EFW) and in wall thickness as shown in Table 1.

but we can also produce other specification according to the customers’ requirements.

Outer Diameter: 6mm-610mm (1/16"-24")

Wall Thickness: 0.3mm-22mm

Length: 0.5mtr-20mtr

ERW line pipe-- for the transportation of oil, natural gas and chemical materials
Standards: AP-5L PSL1/ PSL2 GB/T9711.1-1997 GB/T9711.2-1999Steel
Grade ：A、B、X42、X46、X52、X56、X60、X65、X70

ERW Casing pipe--petroleum and nature air exploration
Standards： API SPEC 5CT, SY/T5989
Materials ：H40 J55 K55

Structure and Mechanical Roundpipe and Tubing
Standards: JIS3466、JIS3445; ASTM A513; GB/T 6728-2002

Steel Materials: Carbon steel, Stainless, and low ally steel
Structure and Mechanical Square or Rectangular Pipe
Standards: GB/T3091 JIS G3452
Steel grade: Q215A、Q215B、Q235AB 、Q295AB、Q345AB

Mill Test Certificate: EN 10204/3.1B
Third party inspection: SGS, BV, Lloyds etc.
