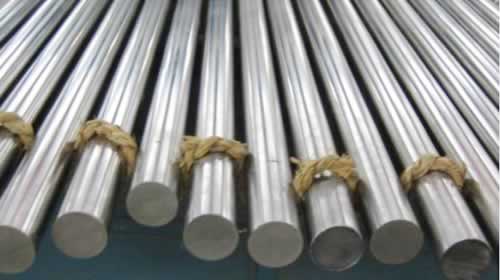

Chrome plate rod bar

Our Hard Chrome Plated Rods are able to withstand the harshest of applications. Available in both standard and metric specifications, our expansive inventory allows us to ship our stock items the same day. We pride ourselves in making sure you can get the replacements you need when you need them.

Material: CK45

Size range:

Outside diameter from 12 to 500 mm

Max length 16 meters

Chemical composition(%)

C	Mn	Si (Max)	S (Max.)	P (Max)
0.40-0.50	0.60-0.90	0.035	0.035	0.035

Mechanical properties:

UTS Min	Y.S. Min	E% Min	Charpy	Condtion
630 N/mm2	340 N/mm2	16		Normalised
600 N/mm2	400 N/mm2	16	41 J	Hardened and tempered

Supply condition:Chrome plated
Chrome thickness:20 TO 50 Micron
Surface roughness:Ra ≤0.4 Micron
Outer diameter tolerance:ISO f7
Ovality:Half of the tolerance ISO f7
Straightness: ≤0.2mm/m

Corrosion resistance:

Test in natural salt spray according to ASTM B 117-36 hours.
Packing:Anti rust oil to be spread on rod surface and each rod to be packed in paper roll and then in wooden box.

Standard

OD(mm)		TOLERANCE(mm)
<	<=	<=	<=
6	10	-0.013	-0.028
10	18	-0.016	-0.034
18	30	-0.020	-0.041
30	50	-0.025	-0.050
50	80	-0.030	-0.060
80	120	-0.036	-0.071
