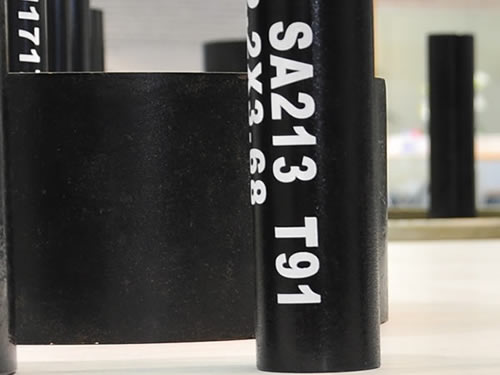

ASTM A213 Alloy Tubes
ASTM A213 Standard covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes.
- Application: Boiler, Superheater and Heat-Exchanger.
- Production Standard, Grade, Steel No:
- ASTM A213 T11, T12, T22, T5, T9
- ASTM A335 P11, P12, P22, P5, P9
- ASTM A199 T11, T22, T5
- ASTM A209 T1, T1a, T1b
- EN10216-2 10CrMo5-5, 11CrMo9-10, X11CrMo5+1, TC1, TC2
- JIS G3462 STBA 12, STBA13, STBA24
Main chemical composition(%) for ASTM A213
| Grade | UNS Designation | C | Mn | P | S | Si |
| T2 | K11547 | 0.10–0.20 | 0.30–0.61 | 0.025 | 0.025B | 0.10–0.30 |
| T5 | K41545 | 0.15 | 0.30–0.60 | 0.025 | 0.025 | 0.5 |
| T5b | K51545 | 0.15 | 0.30–0.60 | 0.025 | 0.025 | 1.00–2.00 |
| T5c | K41245 | 0.12 | 0.30–0.60 | 0.025 | 0.025 | 0.5 |
| T9 | K90941 | 0.15 | 0.30–0.60 | 0.025 | 0.025 | 0.25–1.00 |
| T11 | K11597 | 0.05–0.15 | 0.30–0.60 | 0.025 | 0.025 | 0.50–1.00 |
| T12 | K11562 | 0.05–0.15 | 0.30–0.61 | 0.025 | 0.025B | 0.5 |
| T17 | K12047 | 0.15–0.25 | 0.30–0.61 | 0.025 | 0.025 | 0.15–0.35 |
| T21 | K31545 | 0.05–0.15 | 0.30–0.60 | 0.025 | 0.025 | 0.50–1.00 |
| T22 | K21590 | 0.05–0.15 | 0.30–0.60 | 0.025 | 0.025 | 0.5 |
| T23 | K40712 | 0.04–0.10 | 0.10–0.60 | 0.03 | 0.01 | 0.5 |
| T24 | K30736 | 0.05–0.10 | 0.30–0.70 | 0.02 | 0.01 | 0.15–0.45 |
| T36 | K21001 | 0.10–0.17 | 0.80–1.20 | 0.03 | 0.025 | 0.25–0.50 |
| T91 | K90901 | 0.07–0.14 | 0.30–0.60 | 0.02 | 0.01 | 0.20–0.50 |
| T92 | K92460 | 0.07–0.13 | 0.30–0.60 | 0.02 | 0.01 | 0.5 |
| T122 | K91271 | 0.07–0.14 | 0.7 | 0.02 | 0.01 | 0.5 |
| T911 | K91061 | 0.09–0.13 | 0.30–0.60 | 0.02 | 0.01 | 0.10–0.50 |
Mechanical properties for ASTM A213 Low Alloy Steel
| Tensile strength(min) | 415Mpa |
| Yield strength(min) | 220Mpa |
| Elongation | 30% |
| Delivery condition | annealed |
- Delivery Condition:
- Normalized and Tempered
Inspections and Tests Performed:- Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test, No-destructive Test, Hydrostatic Test.
-
Surface treatment: - Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
- Inner packing:
- Caps on two ends of every pipe
- Package:
- bare packing/bundle packing/wooden carton packing.
