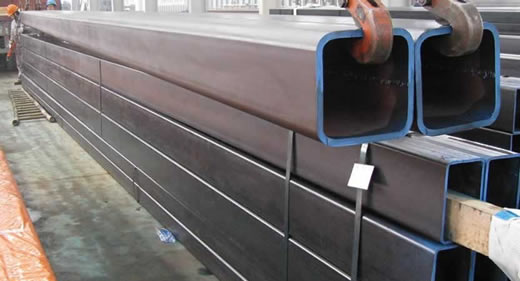

Square hollow section

Square steel tube comes in different sizes, specifications and wall thicknesses. Its uniformity makes it predictable to use and visually appealing. It has a high weight-to-strength ratio. It’s easy to bend, and because square steel tubing is inexpensive, it’s cost-effective- even for large projects.
Square hollow section
Square Hollow Section, SHS, Square Box, Painted, Galvenised, ERW, Black, Mild Steel
  • Steel Grade: Q235, Q345, S235JR, S275JR, SS4007
  • Surface Finish: hot dipped galvanized, electro galvanized, black
  • SHS (Square Hollow Section) Size range Table 2. PDF

Steel tube is easily recyclable. Many projects take advantage of square steel tubing, including all types of buildings, highway guardrails and signage, support columns, trusses, bridges, heavy equipment, storage systems, and exercise equipment.

A wide range of dimensions, when combined with the appropriate steel grade, ensure that the functionality and cost-efficiency of your structure can be optimised.

Keywords:Square Hollow Section, SHS, Square Box, Painted, Galvenised, ERW, Black, Mild Steel
Steel Grade: Q235, Q345, S235JR, S275JR, SS4007
Standard: GB700-88, EN10219, JIS G3101, BS EN 10219:199
Surface Finish: hot dipped galvanized, electro galvanized, black
Note: A: with, T: wall thickness

SHS (Square Hollow Section) Size range Table 2. PDF

Tolerances:
Length +/- 50 MM
Wall Thickness +/- 12.5%
Weight +/- 8%

Mill Test Certificate: EN 10204/3.1B
Third party inspection: SGS, BV, Lloyds etc.


Note: Pre-galvanized square / rectangular hollow section with OD 19mm-70mm and thickness 1mm-2.3mm are also available.
Application:
Furniture industries & domestic applications, bus body, fencing etc. Sizes other than mentioned above can also be produced upon specific requirements.
