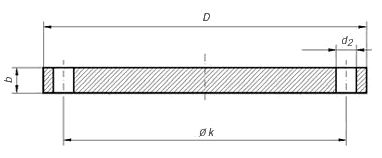

DIN 2527 PN16

DIN 2527 PN16 DIN 2527 PN16
Norminal Pipe Size Flangia Foratura Peso di una flangia
(7,85 kg/dm3)
D b k Numero Vite d2 Forma B (Kgs)
15 95 14 65 4 M12 14 0,72
20 105 16 75 1,01
25 115 16 85 1,23
32 140 16 100 M16 18 1,80
40 150 16 110 2,09
50 165 16 125 2,88
65 185 18 145 3,66
80 200 20 160 8 4,77
100 220 20 180 5,65
125 250 22 210 8,42
150 285 22 240 M20 22 10,4
200 340 24 295 12 16,1
250 405 26 355 M24 26 24,9
300 460 28 410 35,1
350 520 30 470 16 47,8
400 580 32 525 M27 30 63,5
500 715 36 650 20 M30 33 102
